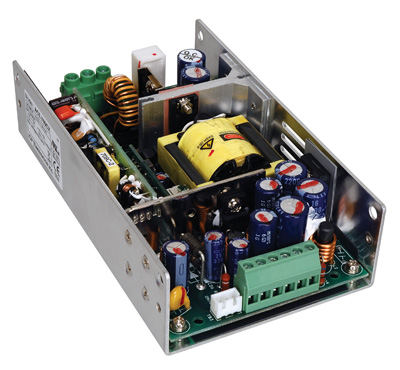

威強工業電源----ACE-709CX
Features
•高效率
•低纹波/噪音
•超电压/电流保护
•多种安规认证
Specifications
 ACE-709CX.pdf
|
输出 |
|
输出电压 |
+3.3V |
+5V |
+12V |
-5V |
-12V |
+5Vsb |
|
负载 |
|
10A |
2.5A |
|
0.5A |
0.5A |
|
|
效率 |
75 % |
|
寿命(Hrs) |
158,000 |
|
输出接口 |
可选线材 |
|
储存温度 |
-20 ˚C~ 85 ˚C |
|
工作温度 |
-20 ˚C~ 70˚C (50 ˚C~ 70˚C降负荷曲线) |
|
尺寸(W×H×D)(mm) |
152.4 x 89 x 39 mm |
Ordering Information
|
Part No. |
Description |
|
ACE-709VX-RS |
80W 12V DC Input Open Frame ATX Power Supply |
|
ACE-709CX-RS |
90W 24V DC Input Open Frame ATX Power Suppl |
|
ACE-709TX-RS |
90W 48V DC Input Open Frame ATX Power Supply |
|
| |
|
|
|
