威強工業電源----ACE-710APM
Features
输入
•输入频率： 47~63 HZ
•输入电流： 2A(RMS)@115VAC; 1A(RMS)@230VAC
•涌入电流：115VAC最大达到30A; 230VAC 最大达到60A
Specifications
 ACE-710APM.pdf
|
输入 |
85 ~ 264V 交流宽范围 |
|
输出 |
|
输出电压 |
+3.3V |
+5V |
+12V |
-5V |
-12V |
+5Vsb |
|
输入电流 |
|
10A (0.2A min) |
3.5A |
|
0.3A |
0.5A |
|
|
效率 |
80% |
|
寿命(Hrs) |
100,000 |
|
输出接口 |
可选线材 |
|
储存温度 |
-40℃ ~ 75℃ |
|
工作温度 |
-20 ~ 70˚C (50 ~ 70˚C降负荷曲线） |
|
尺寸(W×H×D)(mm) |
127 x 81 x 50 mm |
Ordering Information
|
Part No. |
Description |
|
ACE-710APM-RS |

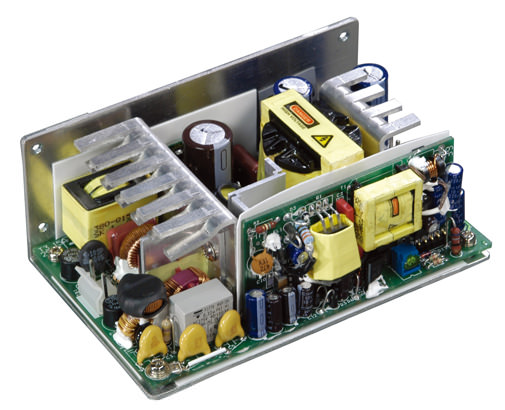

100W AC-DC ATX Power Supply with PFC, meets medical standards |
|
