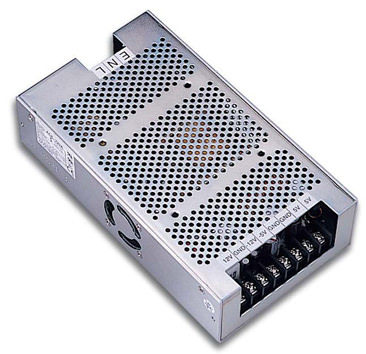

威強工業電源----ACE-723C
Features
• 高效率
• 低波纹/噪音
• 超电压/电流保护
Specifications
 ACE-723C.pdf
|
输入 |
19 ~ 30 VDC
16 A (RMS) for 24 VDC |
|
输出 |
|
电压 |
最小负载 |
最大负载 |
波纹 & 噪音 |
|
+5 V |
3 A |
22 A |
100 mV |
|
+12 V |
0 A |
6 A |
100 mV |
|
-5 V |
0 A |
1 A |
100 mV |
|
-12 V |
0 A |
1 A |
100 mV |
|
|
保护 |
+5 V output ±1%
+12 V output ±4%
-12 V output ±1%
-5 V output ±1% |
|
寿命(Hrs) |
138,000 |
|
储存温度 |
-20 ˚C ~ 85 ˚C |
|
工作温度 |
-20 ˚C ~ 70 ˚C (40 ˚C~ 70 ˚C 降负荷曲线) |
|
尺寸(W×H×D)(mm) |
203 x 112 x 51 |
Ordering Information
|
Part No. |
Description |
|
ACE-723C-RS |
200 W 24 V DC input AT Power Supply |
|
ACE-723T-RS |
200 W 48 V DC input AT Power Supply |
 |
| |
|
|
|
