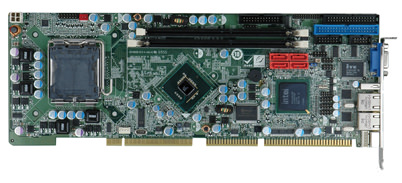

威強CPU長卡系列----WSB-G41A
Features
1. PICMG 1.0 类型
2. 支持 Intel® LGA775 Core™ 2 Quad 处理器前端总线达到 1333 MHz FSB
3. 双通道 DDR3 800/1066MHz 支持达到 8 GB
4. 双 Intel® GbE 以太网, 四个 SATA II, 两个 RS-232 串口接口
5. 威强一键恢复 (One Key Recovery) 解决方案可快速创建 OS 备份和恢复
Specifications
 WSB-G41A.pdf
|
CPU |
LGA775 45nm Intel® Core™2 Quad, Core™2 Duo, Pentium® D, Celeron® at FSB 800/1066/1333MHz 处理器 |
|
芯片组 |
Intel® G41+ ICH7 |
|
BIOS |
AMI BIOS |
|
内存 |
支持两个 240-pin 4GB (max.) 800/1066MHz 双通道 DDR3 SDRAM DIMM (系统最大支持 8GB) |
|
以太网 |
两个 PCIe Intel 82583V GbE 控制器 |
|
I/O接口 |
2 x RS-232
7 x USB 2.0 (支架上一个, 板载通过 pin header 的六个)
4 x SATA II
1 x IDE
1 x FDD
1 x LPT
1 x KB/MS (PS/2)
1 x 5-pin 板载 header for KB |
|
数字I/O |
8-bit 数字 I/O, 4-bit 输入/4-bit 输出 |
|
Super I/O |
ITE IT8718F |
|
红外连接器 |
1 x 红外 by pin header |
|
音频 |
10-pin 板载 header 连接威强音频套件 |
|
显示接口 |
VGA 集成于 Intel® G41 DVI by Silicon Image SIL1362 (仅支持 WSB-G41A-DVI) |
|
看门狗定时器 |
软件可编程支持 1 ~255 sec. 系统复位 |
|
电源 |
AT/ATX 电源 |
|
功耗 |
5 V @ 7.13A, 12 V @ 0.27A, 5VBS@0.11A, Vcore@3.02A 运行 3D Mark2001SE Intel® Core™2 Duo E8500 3.16GHz, DDR3 2GB x 2 |
|
工作温度 |
-10ºC~ 60ºC |
|
相对湿度 |
5% ~95%, 无冷凝 |
|
尺寸 |
338 mm x 122 mm |
|
重量 |
GW: 1100g |
Ordering Information
|
Part No. |
Description |
|
WSB-G41A-R10 |
PICMG 1.0 LGA775 Intel® Core™2 Quad CPU Card with VGA, Dual PCIe GbE, SATAII, COM, USB 2.0 |
|
WSB-G41A-DVI-R10 |
PICMG 1.0 LGA775 Intel® Core™2 Quad CPU Card with VGA/DVI, Dual PCIe GbE, SATAII, COM, USB2.0 |
|
AC-KIT-883HD-R10 |
7.1 channel HD Audio Kit with Realtek ALC883 support dual audio streams |
|
AC-KIT08R-R10 |
5.1 channel AC'97 audio kit with Realtek ALC655 |
|
19800-000100-200-RS |
4-port USB cable with bracket |
|
CF-520-RS-R11 |
CPU cooler |
|
CF-775A-RS |
CPU cooler |
|
32200-000052-RS |
ATA 66 Flat cable |
|
32102-000100-200-RS |
SATA power cable |
|
19800-000049-RS |
LPT cable |
|
2200-000017-RS |
FDD cable |
|
CF-775B-RS |
1U CPU cooler for 90W |
Packing List
|
1 * WSB-G41A single board computer |
4 * SATA cable (P/N:32000-062800-RS) |
|
1 * Dual RS-232 cable (P/N:19800-000051-RS) |
1 * KB/MS Y cable (P/N:32006-000300-100-RS) |
|
1 * IO-KIT-001-R20 (For WSB-G41A-DVI-R10) |
1 * Mini Jumper Pack |
|
1 * Utility CD |
1 * QIG | |
| |
|
|
|
