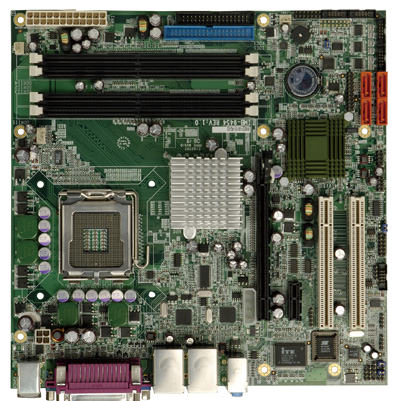

威強工業主板----IMB-9454G
Features
1. Intel® Core™2 Duo, Pentium® 4/ Pentium® D/ Celeron® D CPU 支持达到 FSB 533/800/1066MHz
2. VGA 集成于 Intel® 945G
3. 双通道 DDR2 533/667MHz 支持达到 4GB
4. FDD, LPT, 四个 SATA 3Gb/s, 八个 USB 2.0 和六个 COM
5. 威强一键恢复 (One Key Recovery) 解决方案可快速创建 OS 备份和恢复
Specifications
 IMB-9454G.pdf
|
CPU |
LGA 775 Intel® Core™2 Duo, Pentium® 4/D/ Celeron® D 支持 533/800/1066 MHz FSB |
|
芯片组 |
Intel® 945G + ICH7 |
|
BIOS |
AMI BIOS |
|
内存 |
4 x 240-pin 双通道 DDR2 533/667MHz 达到 4GB |
|
以太网 |
Dual PCIe Realtek RTL8111E GbE 芯片组 支 持 SF2.0. |
|
I/O接口 |
8 x USB 2.0
4 x SATA 3Gb/s
1 x LPT
1 x FDD
5 x RS-232
1 x RS-232/422/485
2 x PS/2 for KB/MS
1 x IDE
1 x 20-pin LPC for TPM |
|
数字I/O |
8-bit 数字 I/O, 4-bit 输入/ 4-bit 输出 |
|
Super I/O |
ITE IT8712F |
|
红外连接器 |
1x 红外接口 by pin header |
|
音频 |
Realtek ALC655 支持C’97 编解码 |
|
固态电子盘 |
N/A |
|
显示接口 |
VGA 集成于 Intel® 945G |
|
扩展槽 |
1 x PCIe x1
2 x PCI
1 x PCIe x16
(支持 PCIe x1/16 PCIe add on cards) |
|
看门狗定时器 |
软件可编程支持 1-255 sec. 通过 super I/O |
|
电源 |
ATX 电源 |
|
功耗 |
5V@2.03A, 12V@0.39A, 3.3V@6.13A, 5Vsb@0.02A, Vcore@2.37A (Intel® Core 2 Duo E7500 2.93 GHZ, DDRII 800 MHz 1GB*4) |
|
工作温度 |
操作: 0°C ~ 60°C (32°F ~ 140°F) |
|
相对湿度 |
操作: 5% ~ 95% 无冷凝 |
|
尺寸 |
244 mm x 244 mm |
|
重量 |
GW: 1200 g; NW: 680 g |
Ordering Information
|
Part No. |
Description |
|
IMB-9454G-R40 |
Micro ATX motherboard, Core™2 Duo CPU 800/1066/1333 MHz FSB with VGA, dual PCIe GbE, SATA 3Gb/s, COM and audio |
|
32200-000017-RS |
FDD cable |
|
19800-003100-100-RS |
Dual USB Cable |
|
19800-000100-200-RS |
Four USB cable |
|
19800-000082-RS |
RS-232/422/485 cable |
|
TPM-IN01-R11 |
20-Pin Infineon TPM module, software management tool, firmware V3.17 |
|
SDVO-100VGA-R10 |
PCIe x16 VGA output SDVO card supports dual display (IEI CPU board only) |
|
SDVO-100DVI-R10 |
PCIe x16 DVI output SDVO card supports dual display (IEI CPU board only) |
|
CF-775A-RS/ CF-520-RS-R11 |
CPU cooler |
Packing List
|
1 * IMB-9454G single board computer |
2 * Dual RS-232 cable (P/N:19800-000112-RS) |
|
1 * SATA power cable (P/N:32102-000100-200-RS) |
1 * I/O shielding (P/N:45014-0017C0-00-RS) |
|
1 * IDE cable (P/N:32200-000052-RS) |
2 * SATA cable (P/N:32000-062800-RS) |
|
1 * Mini jumper pack |
1 * Utility CD |
|
1 * QIG |
|
|
| |
|
|
|
